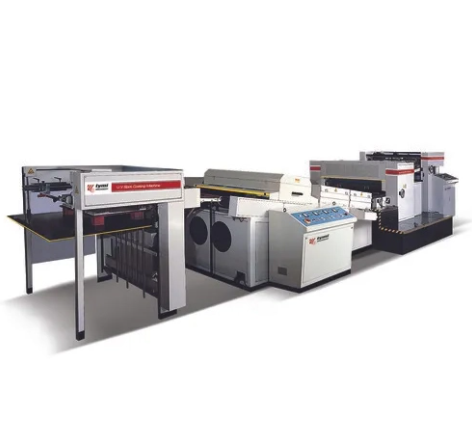

UV Spot Coating Machine (Conveyor Type)

Category:

Description

Product Description

Equipment:

  • – Automatic stream feeder
  • – Coater of spot / full coating for UV varnish / water based varnish
  • – Drying conveyor
  •    – UV curing system
  •    – IR drying system (option)
  •    – Air condition (option)
  • – Automatic delivery unit

Technical Specifications



Max. Sheet Size 600 x 788 mm (Ustar-26C)

800 x 1100 mm (Ustar-36C)

920 x 1280 mm (Ustar-40C)

Min. Sheet Size 340 x 406mm
Coating area 580 x 765 mm (Ustar-26C)

790 x 1090 mm (Ustar-36C)

910 x 1270 mm (Ustar-40C)

Paper thickness 80-450gsm
Machine Speed Up to 5000 Sheets / hour
Dimension (LxWxH) 9054 x 2468 x 1840 mm
Total Weights 5300 kg
Total Power required 51.62 kw (UV) + 17kw (water based)

* Please contact us if you require other sheet size.
